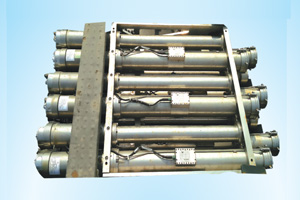

C 303S Anti-Torpedo Decoy Launching System

C 303S Anti-Torpedo Decoy Launching System

Application:

C – 303S Anti-Torpedo Decoy Launching System is meant to counter the threat posed by any active and/or passive homing Torpedo.

Features:

Effectors :

  • Jammer is an underwater broadband noise generator. It masks the target to the attacking torpedo.
  • Mobile Target Emulators (MTE) is a self-propelled countermeasure able to emulate the acoustic and dynamic behaviour of a real submarine. It simulates a target through the generation of echoes based on the acoustic emission of the attacking torpedo.

5” Launcher:

Mechanical Features:

  • Length : 1907mm
  • Height/Width : 163mm/163mm
  • Weight : 79 Kg (approx.)

Mobile Target Emulator:

  • Length : 1149 mm
  • Diameter : 123.8 mm
  • Weight : 23 Kg (approx.)

Pneumatic Features:

  • Minimum firing Depth : 20 Mtrs
  • Operating pressure : 250 bar
  • Maximum firing Depth : 400 Mtrs
  • Max charge rate : 30 bar/min
  • Storage Life : >20 Years without battery

Electrical Features:

  • Operative Temperature : -2 to +35 °C

Environmental Characteristics:

  • Operative temperature : -2 to +35 °C
